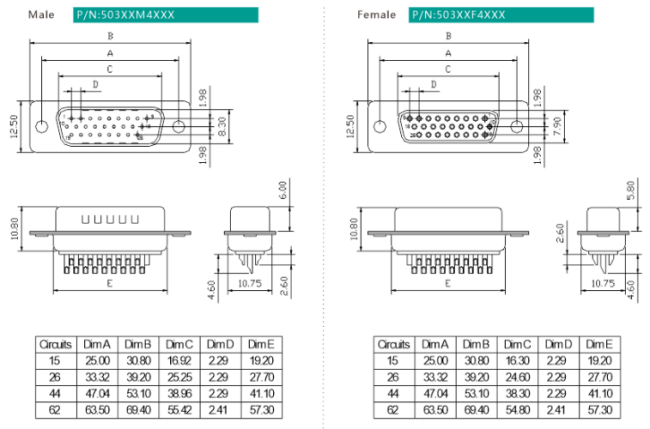

Solder Cup HD D-Sub Connector, Male/Female
| Basic Parameters | |||
|---|---|---|---|
| Part Number | 503XXM4XXX / 503XXF4XXX | ||
| Type | D-SUB | ||
| Pitch | 2.29/2.41mm | ||
| Rated Current | 3A | ||
| Withstand Voltage | 1000V/AC/1min | ||
| Contact Resistance | ＜20.0mΩ | ||
| Insulation Resistance | ≥1000MΩ | ||
| Operating Temperature | -40°C~105°C | ||
| Contact Material | Copper Alloy | ||
| Insulator Material | High Temperature Thermoplastic | ||
